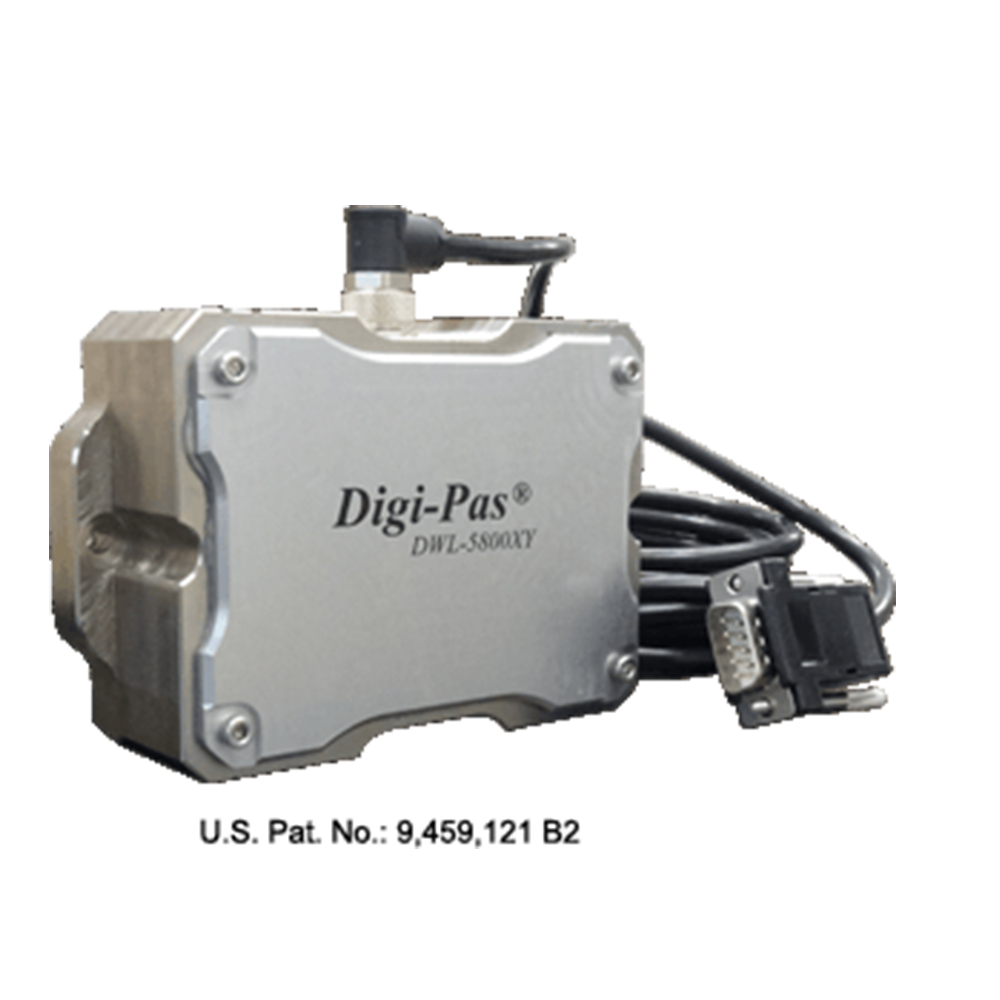

2-Achsen Präzisions-Sensormodule – Model: DWL-5800XY

The DWL-5800XY is an accurate 2-axis precision sensor module 0.0002 ° (0.005mm / M) designed to be integrated into the machine / equipment / structure for real-time simultaneous monitoring of concrete situation leveling and vibration measurements. 1.0 arcsecond). These intelligent modules have been developed by designers to ensure the structural stability of precision machines in any computer numerically controlled machine tool / equipment and incorporate advanced MEMS sensor technology.

The sensor module has a small footprint, toughness, durability, waterproofness, impact resistance and can communicate via various protocols: such as USB, RS232, RS485, and Bluetooth 2.0.

Specification

Measuring range from 0 ~ ±14400 arcsec (Single-Axis)
0 ~ ±3600 arcsec (Dual-Axis)
Resolution of 1 arcsec ((≤5 µm/M)
Accuracy: ± 1 arcsec at 0 to ±1080 arcsec.
± 3 arcsec at other angles
Multiple I/O communication protocols i.e. USB, RS232, RS485 & (optional) Bluetooth connectivity
IP65 certified - waterproof protection
Shock/Impact Test survives over 3,000g to 6,000g
Built-in vibrometer for real time low-frequency (2 to 75Hz) vibration measurement
User-friendly PC-based programmable software

Benefit

  • PLANAR & WIDE ANGLE RANGE MEASUREMENT

    Precision levelling and tilt angles measurement essentially involve simultaneous 2-dimensional planes rather than conventionally known as two independent single-axis. Digi-Pas® 2-axis intelligent inclination modules having high precision and wide measurement range are capable of providing real-time levelling, angular & vibration readings that empower application engineers to continuously measure and monitor machine/equipment/structure angular positional status precisely and speedily.

    These small footprint, 2-axis and high shock resistant MEMS driven inclination sensor modules effectively eliminate limitations associated with using multiple single-axis sensors or bulky pendulum/servo-based sensors to achieve precise 2D levelling and planar angular measurements. MEMS sensor contents no moving part, essentially requires little/no maintanance when compared to pendulum-based sensor.

  • PROGRAMMABLE & USER-DEFINABLE SYSTEM

    Digi-Pas® 2-axis precision inclination sensor module system is designed to be integrated into precision machine/equipment/structure enabling application engineers to instantly access angular positional status without the need for tedious and time-consuming programming.

    The angular measurement system enables user-defined settings to activate any external connected peripheral devices at ease.

  • ACCREDITATION

    DWL-5000XY Series Inclination Sensor Modules accuracy is verified by accredited 3rd party independent calibration & test bodies and National Metrology Centre traceable to SI standard and NIST, JIS, UKAS & DIN under CIPM MRA.

Features

  • DUAL ANGLE DISPLAY

    Measuring resolution of 1 arcsec with Accuracy ± 1 arcsec; at 0 to ±1080 arcsec.;3 arcsec at other angles

  • MEASURING RANGE

    Single Axis measuring range 0 ~ ±14400arcsec

    Dual Axis measuring range 0 ~ ±3600 arcsec

  • ALTERNATE ZERO SETTING

    Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.

  • Generic placeholder image
    WATERPROOF

    The sensor module is waterproof rated and enable to be located in harsh working environment.

  • Generic placeholder image
    USER SELF CALIBRATION

    Easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.

  • Generic placeholder image
    USB LINK TO PC

    USB connection for remote acquisition, monitoring, data logging & analysis in computer.

  • Generic placeholder image
    PC SYNC SOFTWARE - BASIC EDITION

    Enable basic features of remote data acquisition on Angular Measurements.

  • Generic placeholder image
    WIRELESS SYNC (OPTIONAL)

    Wireless connection (Bluetooth industrial class 1) to device for remote monitoring, data logging & analysis from computer. (PRO PC sync software is required)

  • Generic placeholder image
    PC SYNC SOFTWARE - PROFESSIONAL EDITION (OPTIONAL)

    Enable advance features to set parameters and triggering relay outputs for remote data acquisition, logging, processing, analysis on angular measurements and control output of peripheral devices.

Application diagram:

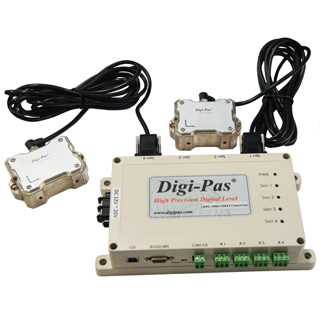

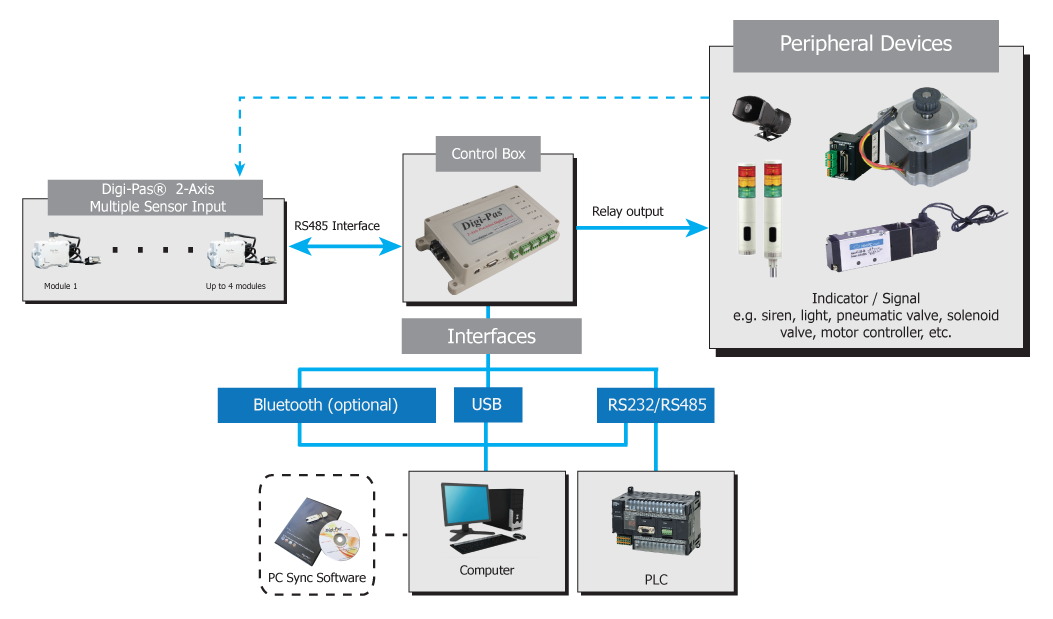

Application diagram 1 - Multiple Sensor Modules

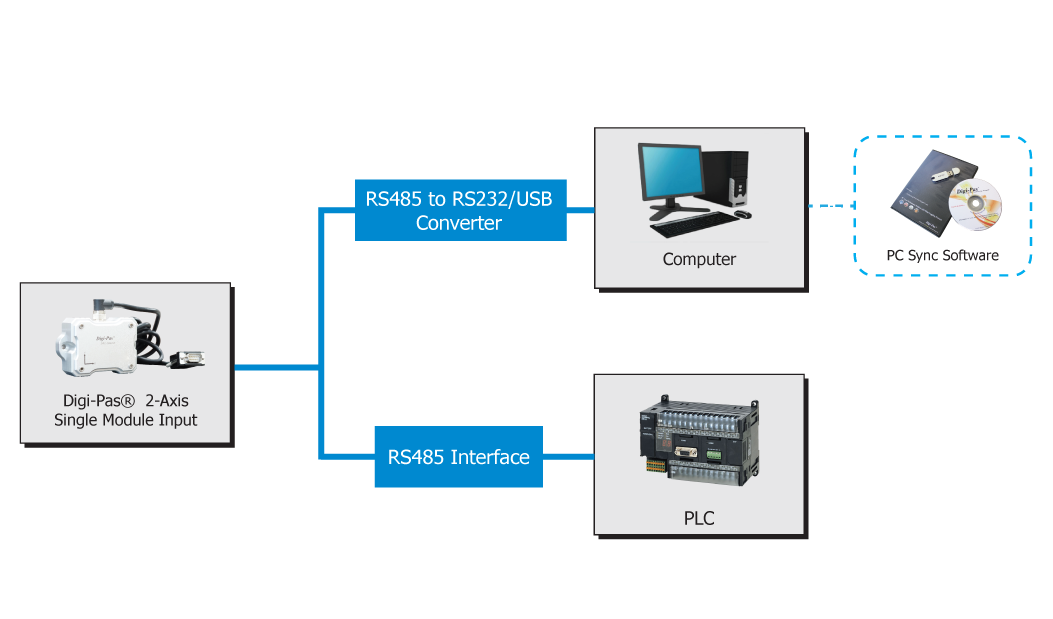

Application diagram 2 - Single Sensor Module

Applications

  • Generic placeholder image

    Digi-Pas® DWL-5800XY is used for levelling, providing a highly PRECISE reference 'zero degree" angle, straightness, parallelism, surface flatness measurements, particularly used in research laboratory precision instruments and metrology equipment.

  • Generic placeholder image

    Digi-Pas® DWL-5800XY is used in the manufacturing of large format industrial and commercial printers rollers for parallelism, inculding also installation, set up and preventive maintenance of such precision large printers in achieving high fidelity colour, quality image performance and reducing waste.

  • Generic placeholder image

    Digi-Pas® DWL-5800XY is used for Vision Measurement Equipment Installation & Setup. Levelling & Checking Equipment's Positional Stability for High Quality Sharp Image Capturing & Measurement.

  • Generic placeholder image

    Digi-Pas® DWL-5800XY is used in both STATIC levelling and DYNAMIC vibration measurement for achieving high stability & high quality image outcomes on Computerized axial Tomography Scan (CT Scan) and Magnetic resonance imaging (MRI) equipment.

  • Generic placeholder image

    Digi-Pas® DWL-5800XY is used for setting alignment-sensitive precision machines, equipment and fixtures. Sensor module can be placed in proximity or remote location while angular & vibration data can be read, monitored, logged, stored for further analysis.
