Digi-Pas Precision Digital Level is highly accurate, verified by 3rd parties accredited calibration labs & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025:2005 and ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN.
1.0” or 0.00° ~ ±5.00° dual-axis
0.002”/ft or 40-second (0.18 mm/M or 0.01°)
±0.004”/ft or 80-second (± 0.02°) from 0° to ±0.5° and 0.04° at other angles
-10°C to +50°C
User may use device without or with Bluetooth® Measurement when paired with smartphone & Digi-Pas Smart level App (Optional)(Bluetooth range: approx. 15mtr.)
ACCURACY of Digi-Pas digital level is verified by accredited 3rd Party Calibration & Test Laboratories in USA, Japan and Germany traceable to NIST, JIS & DIN.
Switch angle display between X & Y Axis
ALTERNATE ZERO SETTING
Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature
ABSOLUTE LEVEL SETTING
Enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.
USER SELF CALIBRATION
Easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.

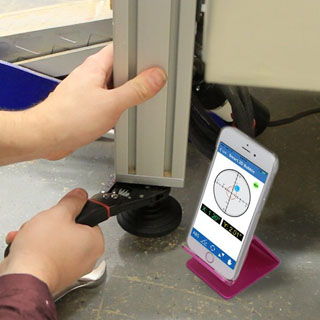

Users may fully utilize Bluetooth mobile features for wireless levelling/alignment activities. One App is FREE to be redeemed for each purchase. Additional PAID Apps can be purchased from Apple and Google Stores. Each App works with the designated smartphone/tablet. Each App can connect with any device DWL1300XY (no restriction).
Mobile application download
Steps to Redeem your 1st FREE "Smart Level App"
First, please download Smart Level App from Apple or Google Store into your smartphone or tablet to enable FREE redemption of your app. If you who need more than one app to share a single device among multiple users, additional paid-apps can be purchased from Apple or Google Store.
NEXT, please follow steps below:
Tap "Redeem" on top left corner of App.
Gently scratch off the label on the back of the App Card accompanied to reveal the hidden 16-digit code.
Enter the & Company name then tap "Redeem" button.
"Redemption Successful" is prompted and you can use full features of the App now.
Mobile Application Key Features
Smart 2D Bubble®
Units Measurement Change
Digi-Pas® DWL-1300XY are used for installation, setup, maintenance of milling & surface grinding CNC machines. It is able to accurately level jig & fixtures and worktable of the machines prior to machining process for achieving exact and precise flat surface machining. Precise fabrication setups keep the machined parts within the required tolerance.
The simultaneous display for dual-axis feature of Digi-Pas® DWL-1300XY master machinist digital level speeding up alignment procedures and reducing training level for new operators to reliably achieve precise levelling results. Operator does not need to meticulously taking readings in both directions over and again as experienced with traditional single-axis levels.
Digi-Pas® DWL-1300XY 2-Axis model is used for Vision Measurement Equipment installation & setup. Levelling & checking equipment's positional Stability for high quality sharp image capturing & measurement.
Digi-Pas® DWL-1300XY is used for aligning precision fixtures. Absolute levelling and positional accuracy are required in meeting tight tolerance for highest quality in many manufacturing processes within semiconductor wafer foundries.
Digi-Pas® DWL-1300XY dual axis model is used for monitoring a precision wafer manufacturing equipment's performance.
Digi-Pas® DWL-1300XY is used in railway maintenance & operation to detect rail tracks deformation and elevation variations. It is a useful tool in aids for rail lines realignment, repair and construction of a new rail line. Accurate rail tracks longitudinal profile levelling and transversal alignment lead to enhanced safety standard for high speed railway operation.
