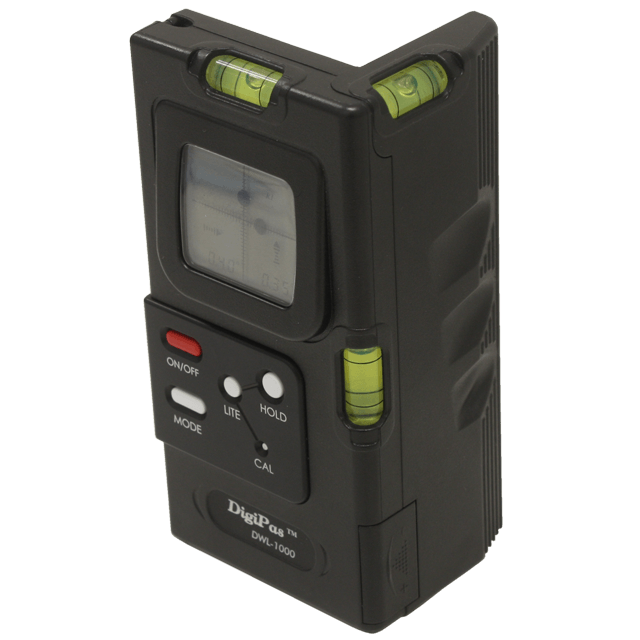

2-Achsen Pfostenwasserwaage – Model: DWL 1000XY

DWL-1000XY is a 2-Axis digital post level, having resolution 0.05°. Designed for a specialist to achieve speedy and accurate installation of posts, fences/guttering, pipes, windows, and door frames.

It is ideally used by professionals for site inspection work, especially to measure vertical and horizontal axis concurrently.

Specification
Measuring Range from 0° ~ 90° X & Y ±90°
Resolution of 0.05° (1.0 mm/M)
Accuracy of ± 0.05° at 0° & 90°
± 0.2° at 1° ~ 89°
Digital display of angles in horizontal and vertical plane (X & Y) simultaneously
Multiple buzzer sounds
Automatic reverse reading of bright LED display technology.
Backlight LCD Display
5 Minutes auto off

Benefit

  • Digital display for both degree & graphic indicators
  • Precise, speedy, & reliable measurements
  • Final site works can be inspected and measured with confident
  • Displayed angles are assisted by 4 directional graphic indicators (X,Y axis)
  • Beep sound assist to levelling working object at 0° & 90° or any angle held
  • Extended length of battery life using 2 x AAA batteries
  • Easier to transfer reference point

Feature

  • Generic placeholder image
    DUAL ANGLE DISPLAY

    Digital display for both numeric in degree & graphic indications simultaneously. Very helpful in assisting and guiding user to effectively setup or inspect object at work site speedily.

  • Generic placeholder image
    ILLUMINATED DISPLAY

    Measured angle can be read in low lighting working conditions.

  • Generic placeholder image
    FAST & PRECISE

    No more "peeping"! Fast & Easy to setup post, window & door frames by focusing straight on the large LCD screen.

  • Generic placeholder image
    BUILT-IN MAGNET

    Strong magnet at the level base enable users to hold to variety of metal surfaces which is useful in many practical applications.

  • Generic placeholder image
    USER SELF CALIBRATION

    Easy self calibration feature allows user to reset the digital level back to factory preset accuracy.

  • Generic placeholder image
    INVERTED DISPLAY READING

    Allow user to read upright digital readings even when the level position is up-side down.

  • Generic placeholder image
    RESOLUTION

    Measuring resolution of 0.05° with accuracy 0.05° at 0° & 90°; 0.2° at 1° ~ 89°

  • Generic placeholder image
    MEASURING RANGE

    Single Axis measuring range 0° ~ 90°; 4 x 90° (360°)

    Dual Axis measuring range 0° ~ 45°

  • Generic placeholder image
    INSTANT UNIT CONVERSION

    Instantly convert measurement unit from °(Degree) to %slope.

  • Generic placeholder image
    ALTERNATE ZERO

    Set reference angle at any desire measurement angle.

Applications

  • Generic placeholder image

    Digi-Pas® DWL-1000XY provides the advantage for a solution to measure vertical and horizontal axis concurrently when erecting steel-beam structures, typically in ensuring column bases are lined and level and columns are plumb. Precisely erecting the entire frame levelled with appropriate orientation is vital to ensure stability, strength and rigidity of steel structures.

  • Generic placeholder image

    Digi-Pas® DWL-1000XY are effectively used in erecting telecommunication tower repeaters located on various landscapes. The digital levels are used in tower periodic maintenance inspection to monitor positional stability with changes in land foundation.

  • Generic placeholder image

    Digi-Pas® DWL-1000XY is useful in drainage piping installation and repair works. Maintaining proper pipe elevation such as vertical position, horizontal slope and alignment between pipe ends maximize water drainage and prevent clogged drainage.

  • Generic placeholder image

    Digi-Pas® DWL-1000XY Digital Post Level is used to setup drilling equipment in Offshore oil & gas industry.

  • Generic placeholder image

    Digi-Pas® DWL-1000XY Digital Post Level is used for alignment of drill tools.

  • Generic placeholder image

    Digi-Pas® DWL-1000XY Digital Post Level is used for marine repair and shipbuilding vessels in shipyard.
